The Vector HD is a high-capacity, mid-wheel drive (MWD) power wheelchair designed for users needing enhanced support, power, and durability. View more
The Vector HD is a high-capacity, mid-wheel drive (MWD) power wheelchair designed for users needing enhanced support, power, and durability. With a powerful dual in-line four-pole motor system, it offers improved torque and performance. Its full front and rear suspension, along with large 8x3" casters, ensures a smooth ride over curbs and uneven terrain, making it suitable for both indoor and outdoor use. An optional 12-inch seat elevation feature is also available, providing enhanced mobility and independence.
Built for clinical functionality, the Vector HD features a reinforced frame that supports up to 450 lbs, catering to bariatric and complex rehabilitation needs. The widened caster configuration enhances stability, and pre-drilled mounting points facilitate easy installation of accessories. With a range of up to 12.5 miles per charge, it combines long-range mobility with reliable performance for daily use.

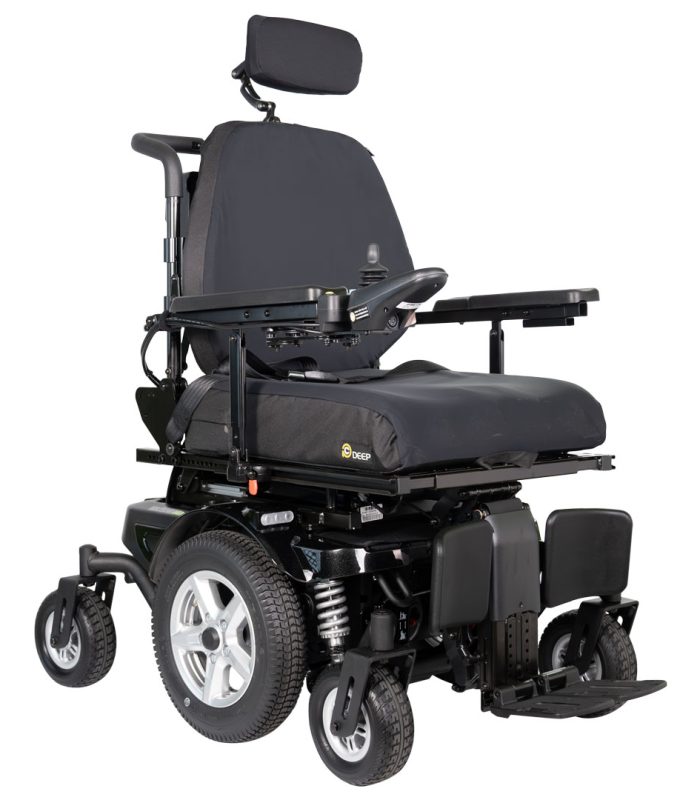

Merits Vector HD
| Prod Spec | Prod Spec Value |
|---|---|
| Maximum User Weight | 450 lbs |
| Drivetrain | MWD |
| Seat Width | 20” - 24” |
| Seat Depth | 16” - 22” |
| Backrest height | 18” - 28” |
| Seat to Floor Height | 18.5” - 19.5” |
| Seat Elevator | 12" |
| Base Length | 47" |
| Base Width | 25" |
| Overall Height | 42" |
| Turning Radius | 27" |
| Ground Clearance | 3" |
| Product Weight | 315 - 416 lbs. |
| Max Speed | 5 mph |
| Batteries | 55Ah, 22NF AGM 51Ah, 22NF GEL |
| Range | Up to 12.5 mi. |
| Drive Electronics | P&G VR2 or R-NET |
| Front Wheels | 8” x 3” foam-filled |
| Drive Wheels | 14” x 3” foam-filled |
| Rear Wheels | 8” x 3” foam-filled |
- Greater stability with wider casters and weight capacity of up to 450 lbs
- Pre-drilled for easy installation, saving you hundreds of dollars
- Full front and rear suspension to tackle all those bumps and curbs
- Dual in-line motors for enhanced efficiency, torque, range and performance
- Rated up to 12.5 miles per charge
