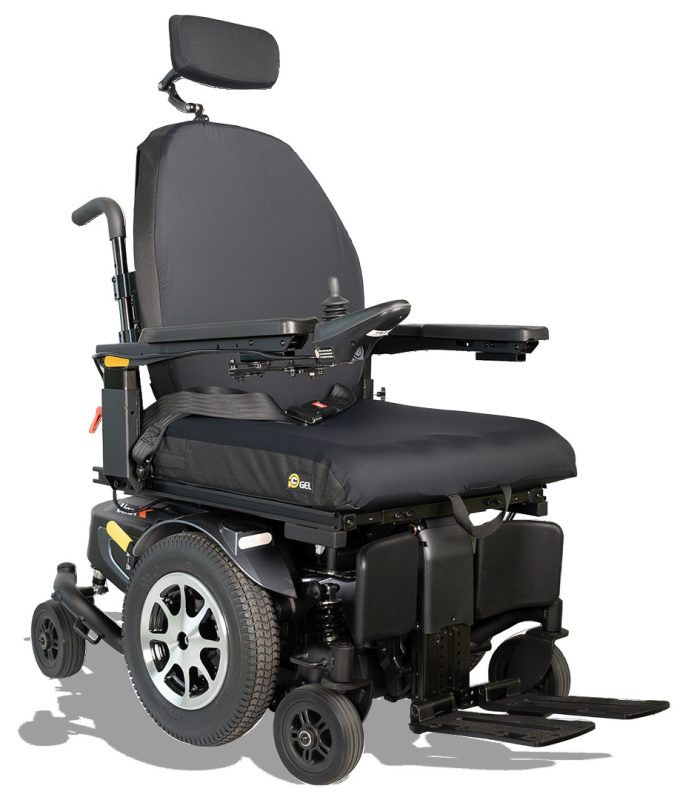

Merits Ultra Power Wheelchair
2 / 2

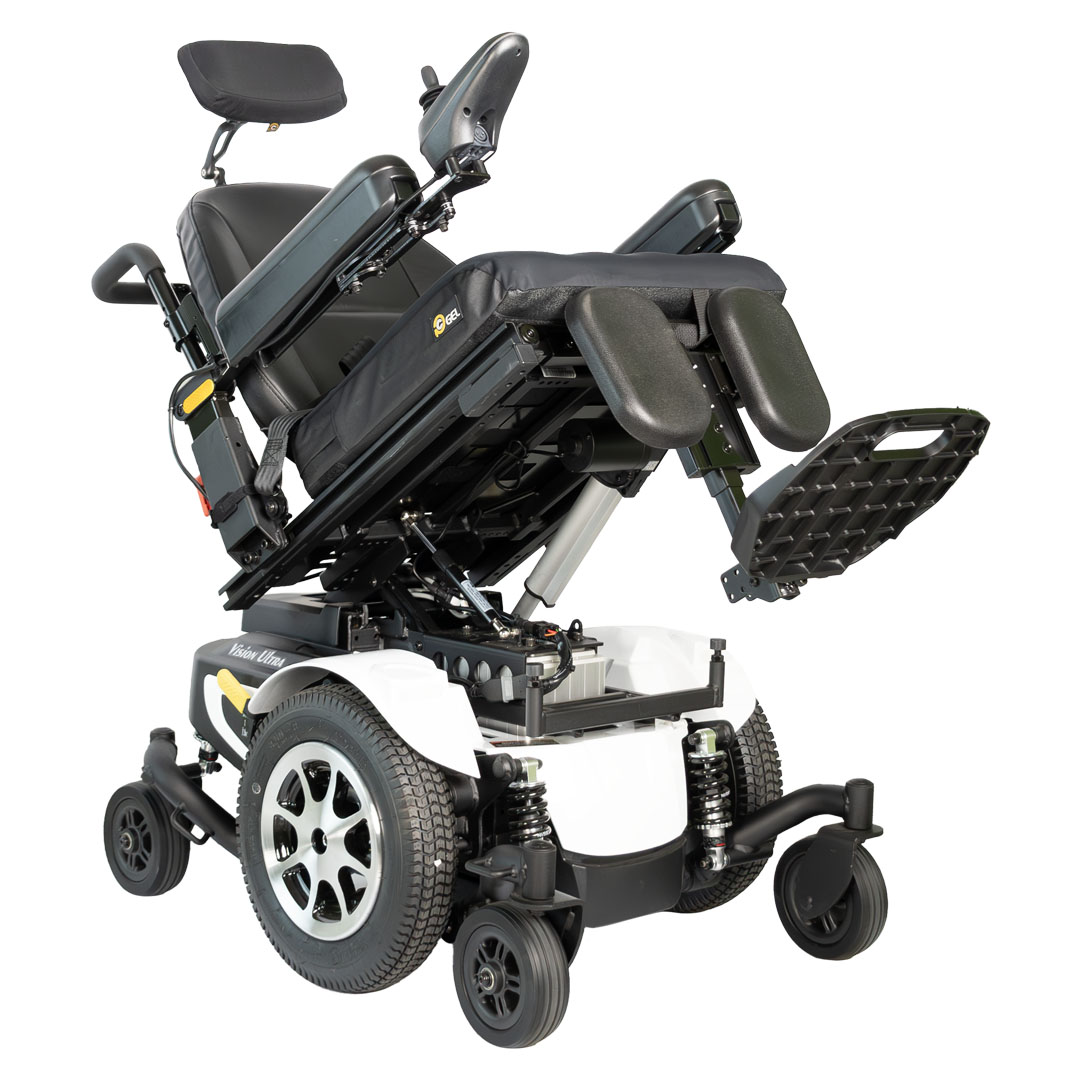

Merits Ultra Power Wheelchair Tilt

Merits Ultra Power Wheelchair thumbnailMerits Ultra Power Wheelchair Tilt thumbnail

The Ultra is a compact, mid-wheel drive power wheelchair designed for exceptional stability and durability. Offering options for positioning including tilt, recline, elevation, and/or power positioning leg rests.  View more

Product Order Request

In Stock


The Ultra is a compact, mid-wheel drive power wheelchair designed for exceptional stability and durability. With a six-wheel-on-the-ground configuration and 14x3-inch drive wheels, it supports a weight capacity of 300 pounds. The wheelchair features a low seat-to-floor height of 16.5 inches for better accessibility and offers three seating systems to meet various user anatomies and clinical needs. An optional 12-inch seat elevation feature is also available, providing enhanced mobility and independence.

Additionally, the Ultra includes a 0° - 50° posterior center of gravity tilt and a 90° - 110° shear reduction recline for effective pressure redistribution and postural management. It boasts a tension-adjustable front and rear suspension for a comfortable ride and customizable seating dimensions, with an adjustable width and depth from 16 to 22 inches. Its compact 24-inch base width enhances maneuverability, and it offers an impressive range of up to 19 miles per charge, making it suitable for various daily activities at home or in the community.


Merits Ultra

Prod Spec Prod Spec Value
Maximum User Weight 300 lbs
Drivetrain MWD
Max Speed 5 mph
Range 12 mi. / 19 mi.
Batteries 55Ah, 22NF AGM 51Ah, 22NF GEL 33Ah, U1 AGM
Ground Clearance 2.5"
Turning Radius 26"
Base Length 36"
Base Width 24"
Overall Height 40"
Seat-To-Floor Height Power tilt or pan: 16.5”-19.5”, Captain: 20”-23
Seat Width 16”-22”, adjusted in 1” increments
Seat Depth 16”-22”, adjusted in 1” increments
Backrest height 18”-28”
Product Weight 315 - 384 lbs
Drive Electronics P&G VR2-A2 60A
Front Wheels 6” x 2” foam-filled
Drive Wheels 14”x 3” foam-filled
Rear Wheels 6” x 2” foam-filled
