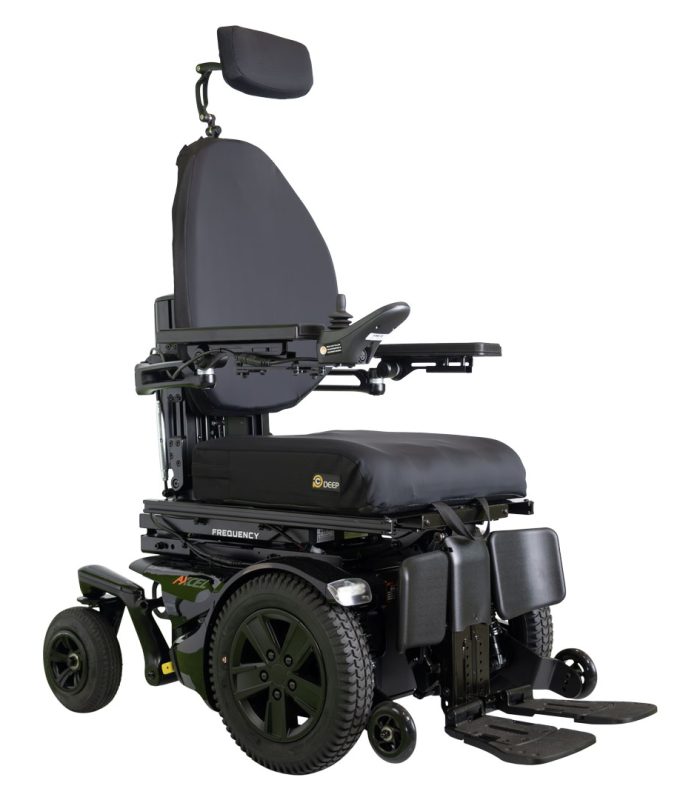

Merits Axcel Power Wheelchair

From Merits

Merits Axcel
×
1 / 1
Merits Axcel

The Axcel FWD Power Wheelchair exemplifies optimal design in front-wheel-drive mobility devices and offers positioning features including tilt, recline, seat elevation, and power positioning leg rests.  View more

Product Order Request

In Stock


The Axcel FWD Power Wheelchair exemplifies optimal design in front-wheel-drive mobility devices. It features independent hydraulic suspension and high-performance components, providing enhanced shock absorption and stability across various terrains. Equipped with large 9-inch casters, the wheelchair facilitates seamless navigation over obstacles and uneven surfaces. Integrated bright LED lighting improves visibility and safety during use.

The device is powered by MK batteries, delivering a range of up to 19 miles per full charge, with tool-free rear battery access for efficient maintenance. The power recline feature offers adjustable seating positions from 85 to 160 degrees, complemented by a power tilt range of 0 to 50 degrees and an adjustable 6-inch shear reduction recline, supporting individualized patient positioning, pressure management, and comfort. An optional 12-inch seat elevation feature is also available. These combined functionalities support individualized patient positioning, effective pressure management, and optimal user comfort across a wide array of clinical requirements.

Specifications

Prod Spec Prod Spec Value
Maximum Weight Capacity 300 lbs
Max Speed 6 mph
Range up to 19 mi.
Base Width 24.5
Base Length 39.6
Minimum Turning Radius 26" without footplate
Ground Clearance 3"
Battery Type 60Ah, M34 GEL
Weight Including Batteries 350 - 385 lbs
Drive Electronics R-NET 120A
Seat to Floor Height 17.5-19.5”
Optional Seat Elevator 12”
Tilt Options 0°–50°
Recline Options 85°–120° (manual) 85°–180&
Drivetrain FWD
Backrest height 18-22"
Seat Depth 14-22"
Seat Width 12-22"
Drive Wheels 14" x 3" hybrid gel
  • Independent hydraulic, high-performance suspension
  • Large 9” casters to navigate obstacles and rough terrain
  • Bright LED lights, included
  • Tool-free, rear battery access
  • Power recline adjustment 85° - 160°
  • Power tilt adjustment 0° - 50°
  • Adjustable 6” shear reduction recline
  • Powered by MK batteries, rated up to 19 miles per charge
